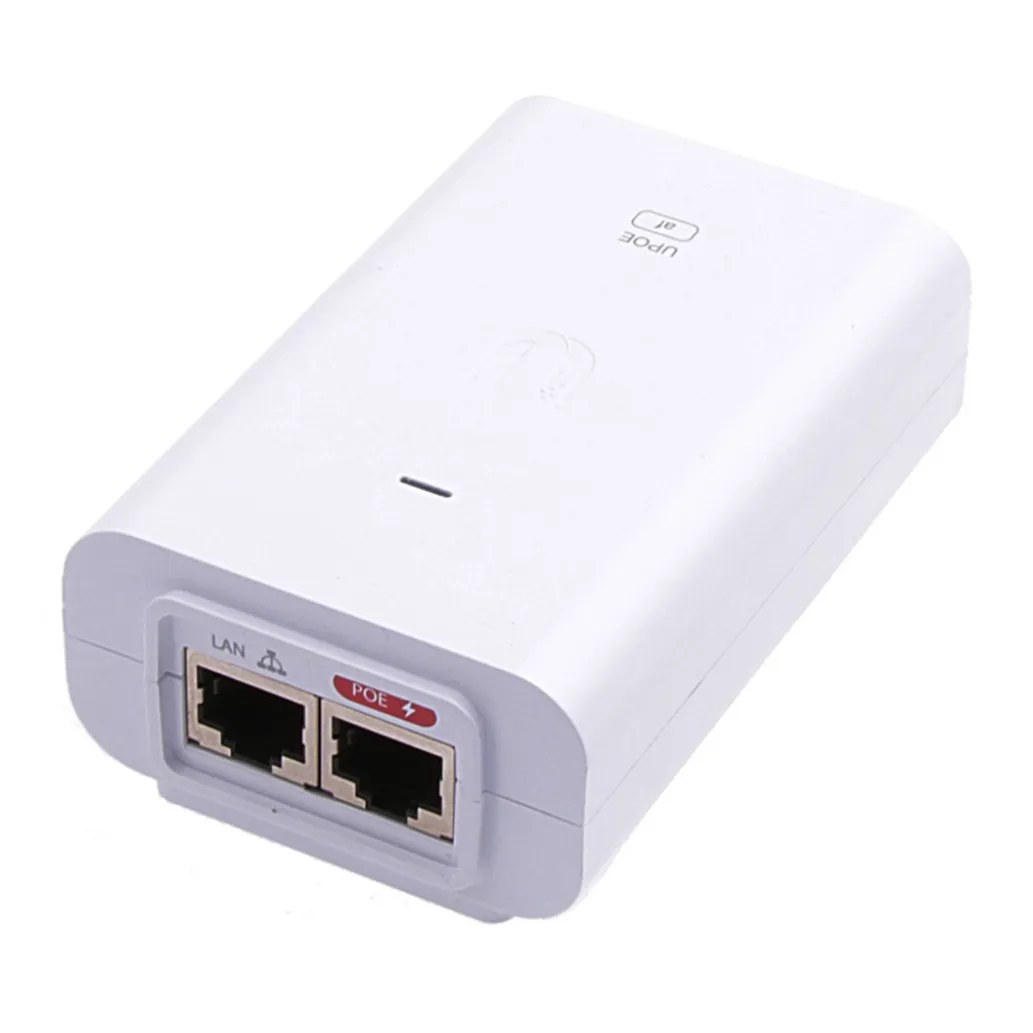

PoE Injector Ubiquiti Networks U-POE-AF PoE adapter 15W/48 V
Adapter, ki lahko napaja naprave UniFi PoE z aplikacijami brezžične mreže ali razbremeni odvisnosti od napajanja stikala PoE.
Lastnosti:
Zagotavlja do 15W PoE
Združljivo z U6 Mesh, Camera G4 Pro in drugimi napravami PoE
Zaščita pred prenapetostjo, najvišjim impulzom in nadtokovno zaščito
AC kabel z ozemljitvijo
LED indikator za spremljanje stanja
SPECIFIKACIJE:
| U-POE-af | |
| Dimensions | 86 x 46 x 33 mm |
| (3.39 x 1.81 x 1.30″) | |
| Weight | 100 g |
| (3.53 oz) | |
| Output Voltage | 48VDC @ 0.32A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | Yes |
| Reset Button | No |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 500mA @ 90VAC |
| Inrush Current | <100A Peak @ 25°C |
| Efficiency | 84.25+% |
| Output Ripple | 200mV p-p |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | – |
| Operating Temperature | 0 to 40° C |
| (32 to 104° F) | |
| Storage Temperature | -30 to 70°C |
| (-22 to 158° F) | |
| Operating Humidity | 5 to 90% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
Napajanje
-
48 V
-
100-240 V
-
50/60 Hz
Vmesniki
-
1
Mere in masa
-
100 g
-
86 x 46 x 33 mm
Network
-
DA
Pogoji uporabe
-
0 - 40 °C
-
5 - 90 %
-
-30 - 70 °C
Značilnosti
-
Bela
-
CE, FCC, IC, UL
