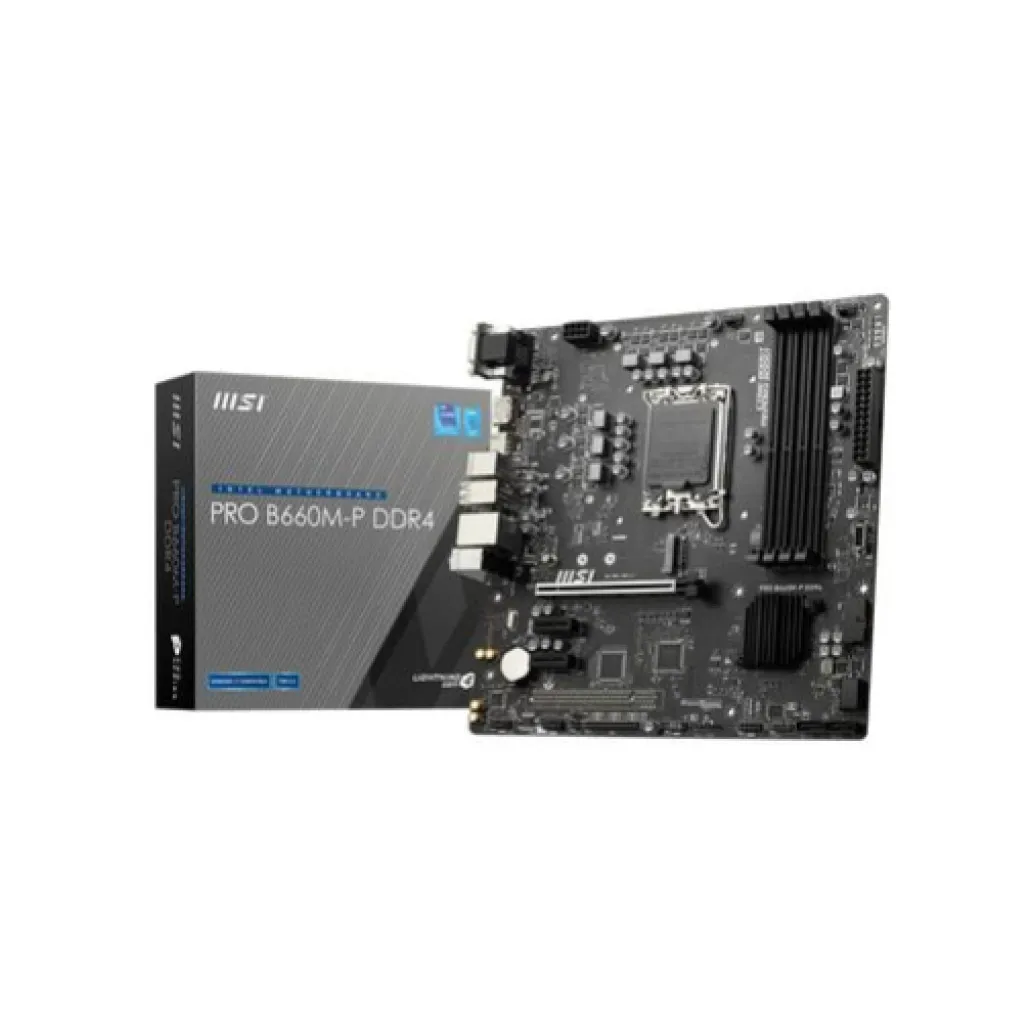

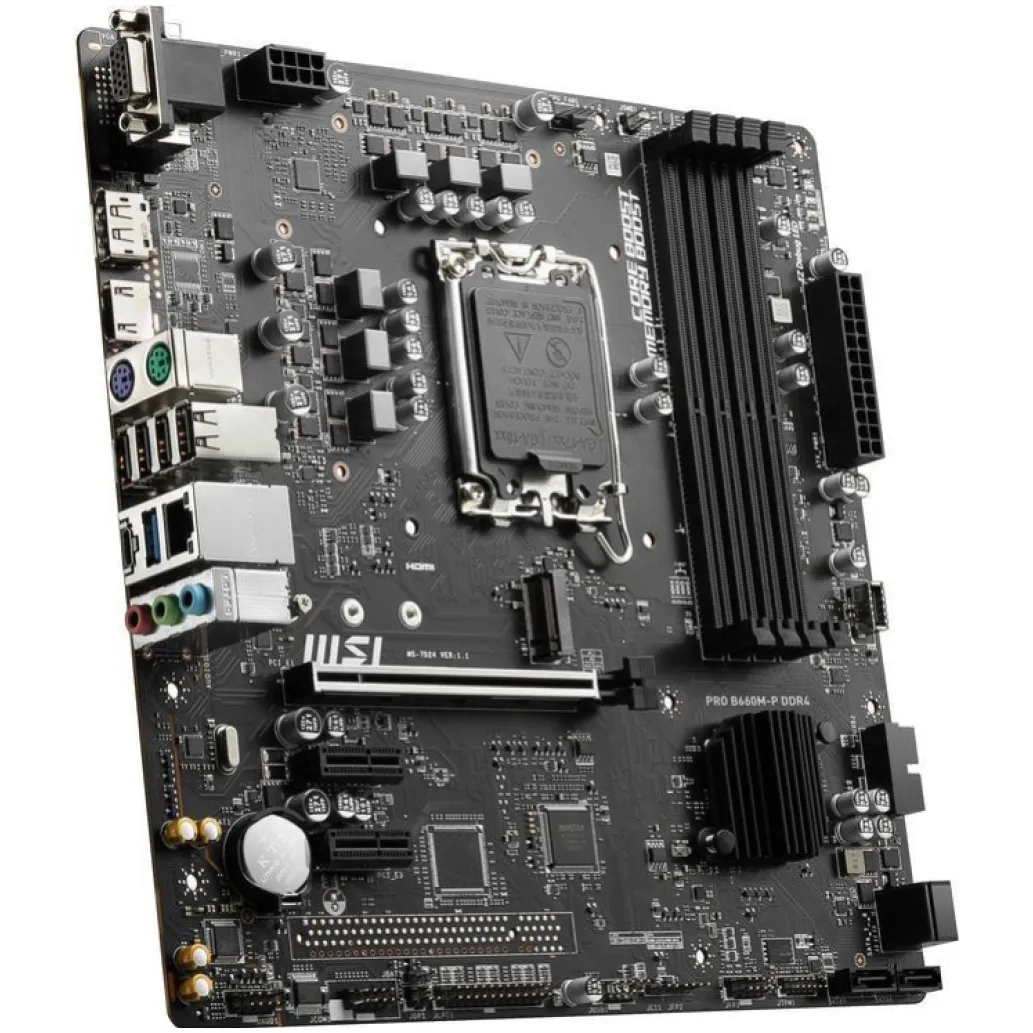

Osnovna plošča 1700 MSI PRO B660M-P DDR4 microATX VGA HDMI DisplayPort USB-C 7D24-013R

Motherboard – micro ATX

Intel B660

LGA1700 Vtičnico

1

(podpira 12. Generacija Intel Core / Pentium / Celeron)

128 GB

DDR4

2133 MHz, 2666 MHz, 3600 MHz (O. C.), 4000 MHz (O. C.), 4600 MHz (O. C.), 3200 MHz

Non-ECC

Unbuffered

Dual channel memory architecture, Intel Extreme Memory Profile (XMP)

HD Audio (8-kanalni)

Realtek ALC897

High Definition Audio

Realtek RTL8111H

Gigabit Ethernet

1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1

SATA-600 -priključki: 4 x 7pin Serial ATA – RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -priključki: 1 x M. 2

1 x HDMI ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 1 x USB 3.2 Gen 1 ¦ 1 x USB-C Gen2 ¦ 1 x mikrofon – mini-jack ¦ 1 x audio line-v – mini-jack ¦ 1 x audio line-out – mini-jack ¦ 1 x PS/2 za tipkovnico ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0

2 x USB 2.0 – glave ¦ 2 x USB 3.2 Gen 1 – glave ¦ 1 x USB-C Gen 1 – glave ¦ 1 x audio – glave ¦ 1 x serijski – glave ¦ 1 x parallel – glava

24-pin glavni napajalni priključek, 8-pin, ATX12V priključek

AMI

Večjezični BIOS, tehnologijo UEFI BIOS-a z vmesnikom ACPI, ACPI 6.4 podporo, SMBIOS 3.4 podpora

MSI Avdio Povečanje, anti-pop funkcija, Debug LED, MSI Jeklen Oklep, MSI Jedro Povečanje

Primeru značko, IO ščit, M. posnetek 2

2 x Serial ATA kabel

Gonilniki In Pripomočki

24,4 cm

24,4 cm
